August 5 to August 7, 2025
Lancaster: 1866 Colonial Village Lane, Suite 112, Lancaster, PA 17601
3 Days | 21 PDHs | Cost: $1,800

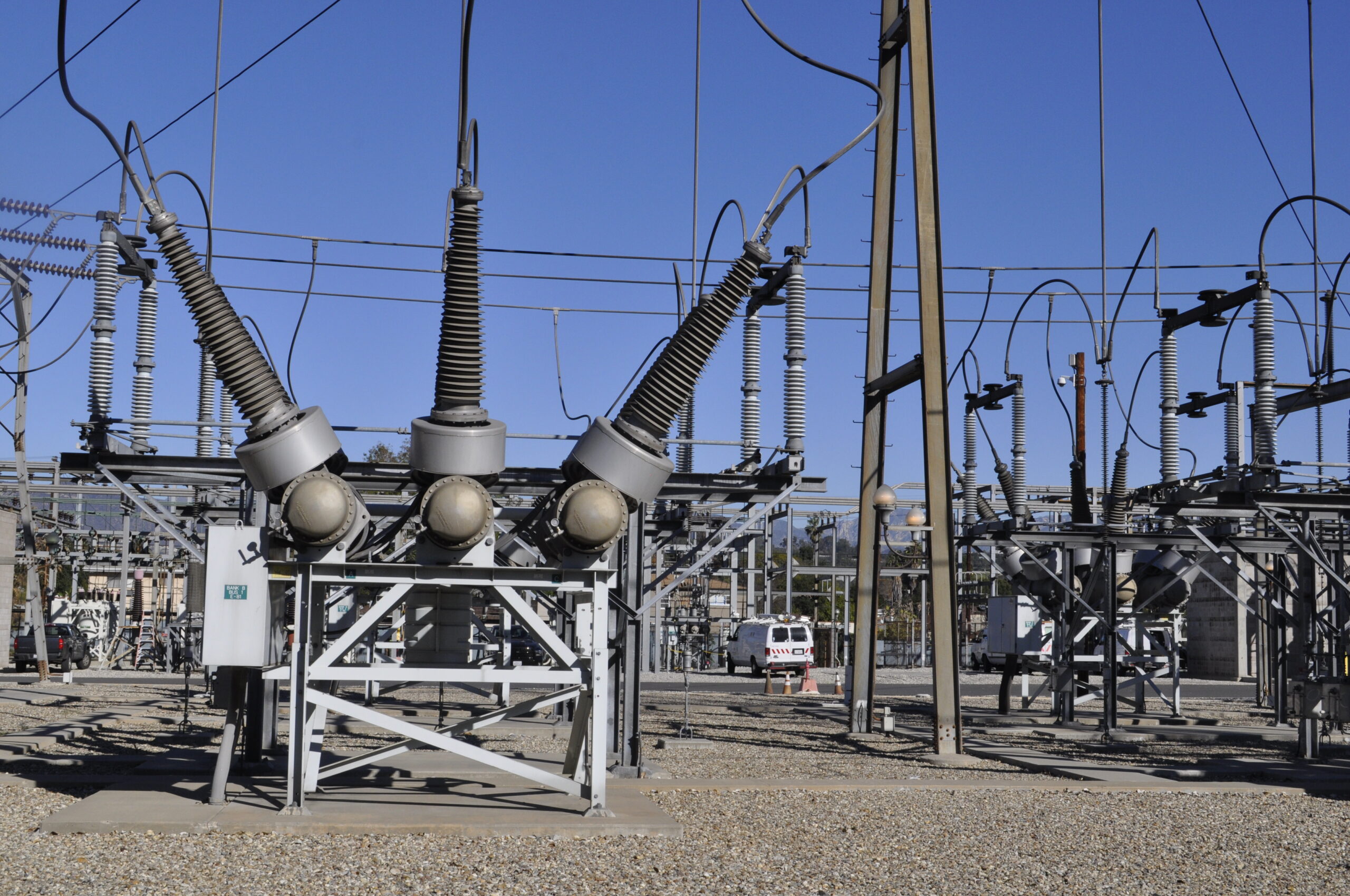

Testing and Commissioning of High Voltage Circuit Breakers provides foundational theoretical and hands on training in the application, operation mechanism, and testing of oil and gas circuit breakers used in the power utility industry.
WHO SHOULD ATTEND?
- Field Engineers and Technicians
- Commissioning Engineers and Technicians
- Protective Relay Engineers and Technicians
Related Pages
LEARNING OBJECTIVES
- State human performance concepts and demonstrate best practices to avoid common errors when working with microprocessor relays
- Identify protection system components
- Explain relay logic and its components
- Interpret relay logic using a relay schematic diagram
- Identify SEL logic and interpret logic diagrams and equations in SEL relay manuals and drawings
- Compare Relay Word Bits with Protection functions
- Communicate with an SEL-751 relay via front panel pushbuttons and HMI
- Navigate relay settings and features
- Microprocessor relay protection elements testing
LEARNING EXPERIENCE
- Communicating and Navigating Relay Settings using AcSELerator QuickSet and SEL relays
- Protective Relay Test Equipment: Doble F6150 and Protection Suite Software
- Hands-on experience of microprocessor relay protection elements testing
PREREQUISITES
- Basic understanding of power system protection theory and application
- Working knowledge of three-phase AC power systems and terminology
- Experience reading and interpreting substation electrical schematics and drawings
Download Course Information
